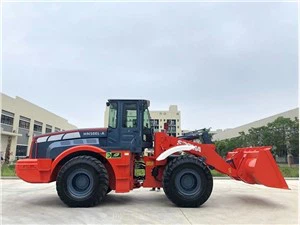

3.5t Electric Log Loader HNL-35EL
CE Certificate Tsis muaj emission Tsis muaj kuab paug Electric Log Loader SOCMA Hom
Performance Parameter
|
Kev ua tau zoo |
Parameter |
|
|
Kev ua tau zoo |
Rated Load |
3500kg ib |
|
Lub thoob capaity (Standard) |
2m3 |
|
|
Bucket peev (yeem) |
1.4-3.0m3 |
|
|
Ua haujlwm hnyav |
11.5t |
|
|
Max. gradabiltly |
28 (degree) |
|
|
Max. Lub kaum sab xis |
35 ntxiv (degree) |
|
|
Max.Dumping Qhov siab |
Ntau dua los yog sib npaug rau 3060 (rau utting edge) |
|
|
Dumping ncav cuag |
Ntau dua lossis sib npaug rau 1020 |
|
|
Max.Recovery Angle |
Ntau tshaj los yog sib npaug rau 50 |
|
|
Max.Breakout Force |
100 |
|
|
Liting lub sij hawm ntawm ifle caj npab |
Tsawg dua los yog sib npaug li 6 |
|
|
Tag nrho lub sijhawm voj voog |
Tsawg dua lossis sib npaug rau 10.4 |
|
|
Min.tumning radius(nyob rau hauv txoj hauj lwm cary) |
5860 |
|
|
Qhov loj me (L * W * H) |
6970*2245*330 |
|
|
Parameter ntawm Travel Motor |
Hom Tsav |
Permanent Magnet Synchronous Tsav |
|
Tsav Rated |
80 kW |
|
|
Motor kev khiav hauj lwm efficiency ntau yam |
86 feem pua -98 feem pua |
|
|
Roj teeb |
Hom Tsav |
Permanent Magnet Synchronous Tsav |
|
Tsav Rated |
45 kW ib |
|
|
Mator operalting efficiency ntau yam |
86 feem pua -98 feem pua |
|
|
Hom |
iFePO |
|
|
Roj teeb ntsuas qhov peev xwm |
PEB 192 kWh |
|
|
Rated Peev Xwm ntawm Roj Teeb |
302A.h |
|
|
Rated Voltage |
638V |
|
|
Rounds ntawm tag nrho cov nqi thiab tawm mus |
4000 up |
|
|
Kev Pabcuam Lub Neej |
tshaj 8 xyoo |
|
|
Them sij hawm |
0.6-1.5h (Variance nrog lub Charger) |
|
