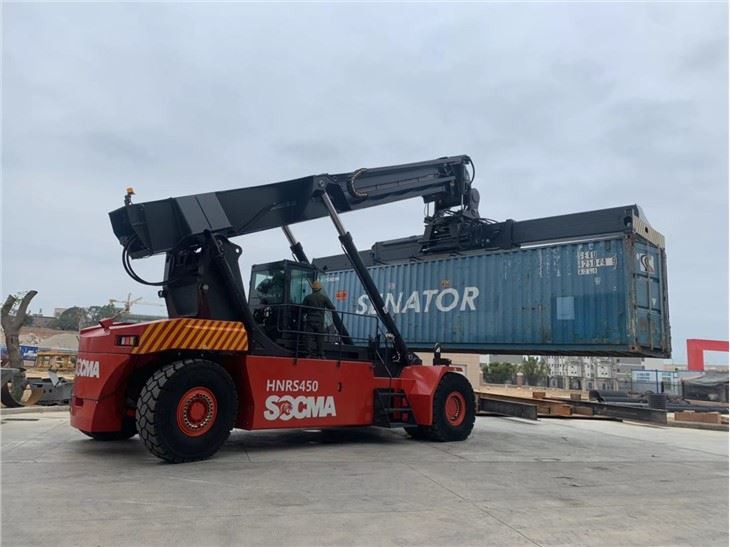

45 Tuj Tag Nrho Cov Thawv Tau Txais Stacker
High quality haib engine nruab nrog Cummins hom
Nrog tag nrho cov hluav taws xob tswj system kom ntseeg tau tias kev lag luam roj noj
Nruab nrog turbocharger los txhim kho lub zog ntawm lub tsheb thiab lub cav efficiency
Lub zog muaj zog kom ua tau raws li ntau yam kev ua haujlwm
Ua raws li EU theem III emission
Lub thawv hnyav ncav cuag stacker
High Quality Fais Cav
Nruab nrog lub cav cummins lossis Volvo cav, nrog cov hluav taws xob tag nrho
tswj system los xyuas kom meej kev lag luam roj noj
Nruab nrog turbocharger los txhim kho lub zog tsheb thiab
cav efficiency
Lub zog muaj zog kom ua tau raws li ntau yam kev ua haujlwm
Ua raws li EU theem III emission standard
Tag nrho lubrication kev ua tau zoo los xyuas kom meej lub suab qis
Lub tshuab hluav taws xob tiv thaiv qhov system kaw lub cav kom tsis txhob muaj
qhov kev puas tsuaj thaum qis lub-roj siab / kub kub
Advanced Technology-Lub Tsheb Zoo Zoo
Nrog rau ntau qhov zoo, lub tsheb muaj kev nyab xeeb / kev ua haujlwm siab / siab precision thiab kev ua haujlwm siab. Integrated kev khiav hauj lwm system xyuas kom lub tsheb ua tau zoo heev.
Hydraulic System
Lub tuam txhab ntiaj teb Linde hydraulic yog cov khoom siv hydraulic nto moo uas muab cov khoom lag luam zoo / siab precision / siab kev ntseeg siab hydraulic khoom.
HNRS450 yog nruab nrog Linde twj tso kua mis thiab tswj valve, cov khoom no tau tsim tshwj xeeb rau kev ncav cuag stacker, nrog rau kev nkag siab ntawm kev tswj xyuas hluav taws xob txuag hluav taws xob, kev tswj xyuas meej, tsis muaj zog thiab lub neej ntev, qhov zoo heev hydraulic system txhawb nqa lub tsheb ua haujlwm zoo.
Intelligent hydraulic roj txias tuaj yeem ua kom cov roj ruaj khov thiab tsis txhob muaj qhov hloov pauv ntawm cov roj, ua kom lub neej ntev roj kom txuag tau nyiaj.
Full Can-bus Control System
HNRS450 ncav cuag stacker yog nruab nrog tag nrho Can-bus tswj system.
Lub cav / kis tau tus mob / hluav taws xob system / hydraulic system / loading kev ruaj ntseg system / kis system yog tag nrho cov kev koom ua ke nyob rau hauv lub Can-bus system, tag nrho cov pab kiag li lawm yog saib xyuas ntawm lub sij hawm. Parker tswj units ua kom lub system txhim khu kev qha thiab flexilbe.
Tsis Siv Neeg Kis
ZF tsis siv neeg kis
Nws pib-gear kis tau tus mob nrog 5 forwards / 3 thim rov qab ceev, ua rau lub tsheb khiav lag luam du thiab kev lag luam zoo
Kev saib xyuas yam tsawg kawg nkaus, lub neej ntev
Inching muaj nuj nqi kom paub meej txog qhov ua tau zoo
Reversing interlock, ceev tswj downshift tiv thaiv
Heavy Duty Drive Axle
Kessler tsav qag, ua pov thawj zoo rau cov tsheb thauj khoom hnyav, dav khiav, 2- theem txo cov iav kem, lub cev muaj zog qag optimized rau hnyav loading mob. ntub disk tsav tsheb nres tsis muaj kev saib xyuas.
Qhov tsav qag no ua haujlwm nyob rau hauv kev poob siab load kom ntseeg tau tias muaj kev nyab xeeb siab thiab lub neej ntev.
Parameter ntawm 45 Tuj Reach Stacker
| Cav | ||
| Hom | CUMMINS | |
| Hom | QSM 11 | |
| Lub tog raj kheej no./displacement | 6/10820 cm3 | |
| Rated zog @ ntsuas ceev | 250kw @ 2100rpm | |
| Max. lub zog | 1674 Nm @ 1500 rpm | |
| Rated tam sim no ntawm alternator | 150A | |
| Roj teeb | 24V | |
| Kev xa tawm | ||
| Hom | ZF/5WG261 AUTO | |
| Hom | Auto-shift/interlock | |
| Hom Clutch | Torque converter | |
| iav no. | 5F/3R | |
| LUB SIJ HAWM | ||
| Tsav lub log | 18. 00-25 40PR | |
| Steering log | 18. 00-25 40PR | |
| Hom | Pneumatic | |
| Siab | 10 bar | |
| Quantity, pem hauv ntej / nram qab | 4/2 | |
| TANKS CAPACITY | ||
| Hydraulic roj tank | L | 800 |
| Roj tank | L | 500 |
| DRIVE AXLE | ||
| Hom | Kessler/Lub teb chaws Yelemees | |
| Qauv | D102PL341 | |
| STEERING AXLE | ||
| Hom | Kessler/Lub teb chaws Yelemees | |
| Qauv | L102 | |
| Steering | Ob chav ua lub tog raj kheej | |
| BRAKE SYSTEM | ||
| Kev pabcuam nres | Hydraulic ntub-disc | |
| Nres nres | Hluav taws xob tso tawm disc nres, enabled thaum fais fab tuag | |
| BOOM | ||
| 2 x Dual nkaus nqa lub tog raj kheej | ||
| 1 x Dual action extension cylinder | ||
| SPREADER | ||
| Tswj ISO 20'-40' thawv | ||
| 2 x damping cylinder | 2 x gearbox & nres system | |
| Hom | SIB 45 | |
| Hloov cov degrees | -105 degree /+195 degree | |
| Sideshift | -800/+800 hli | |
