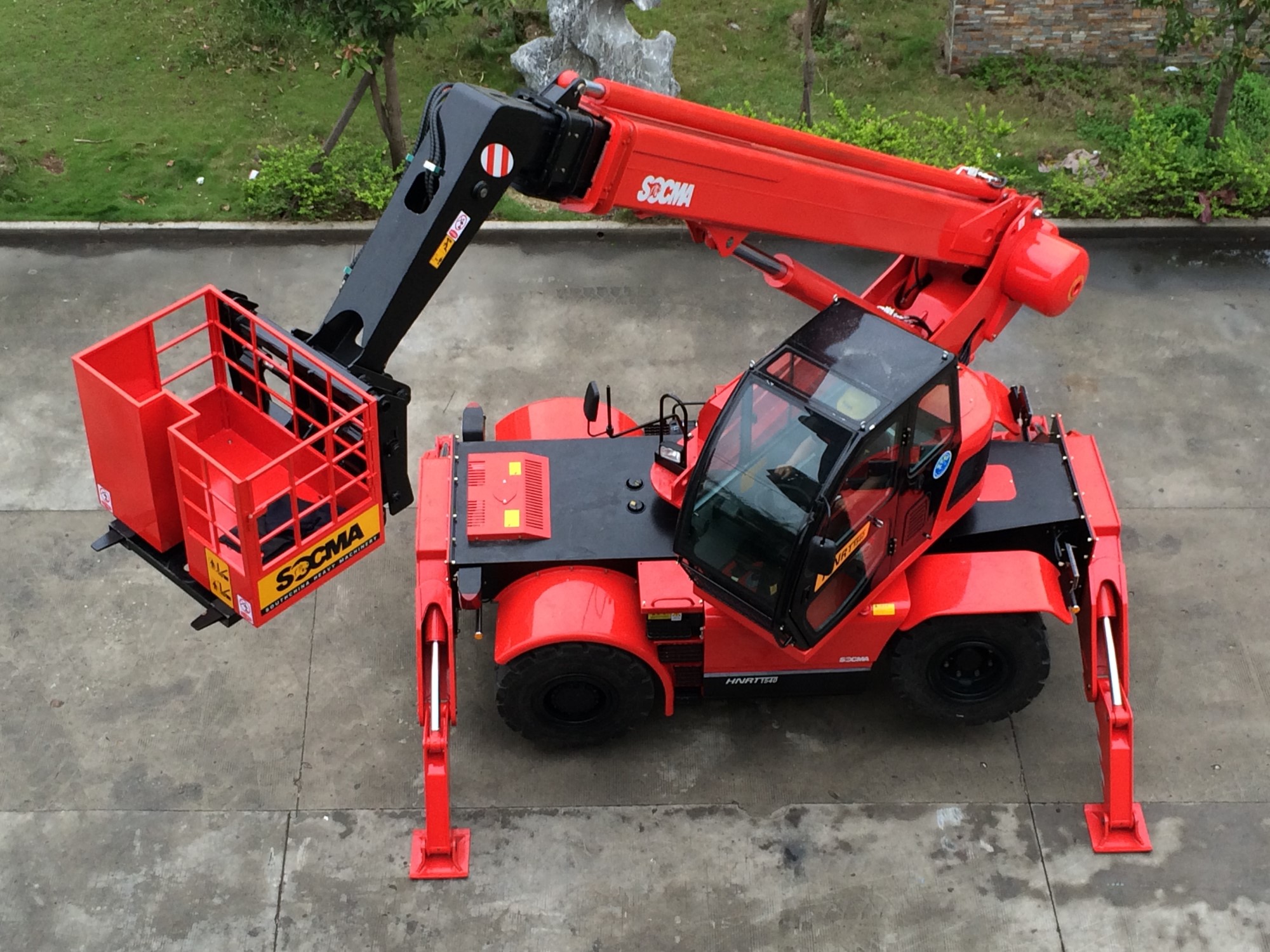

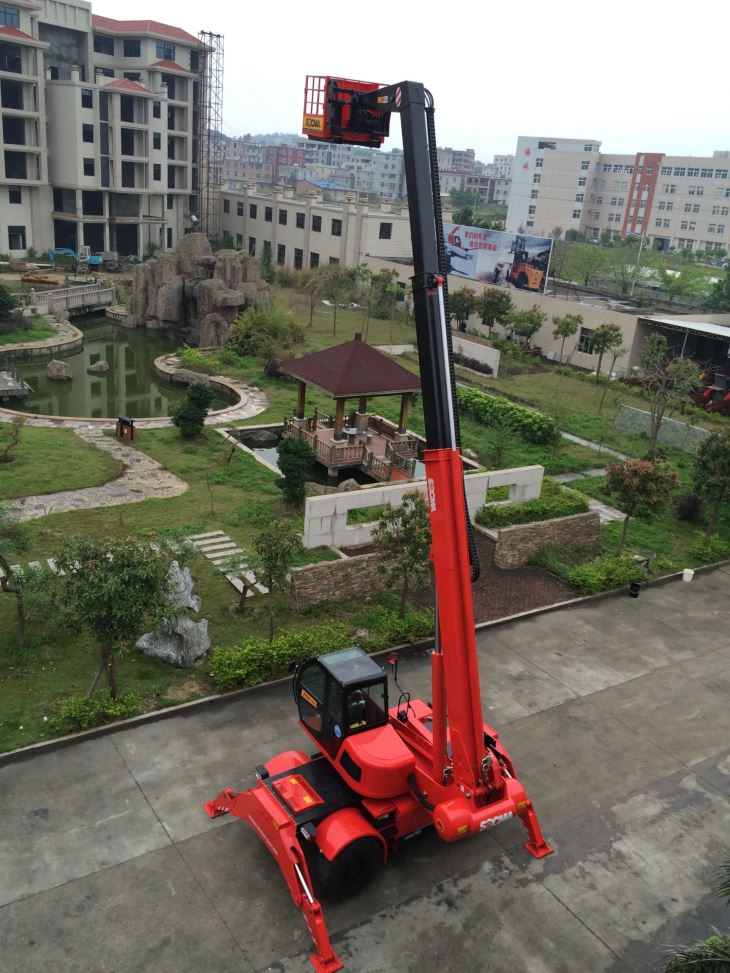

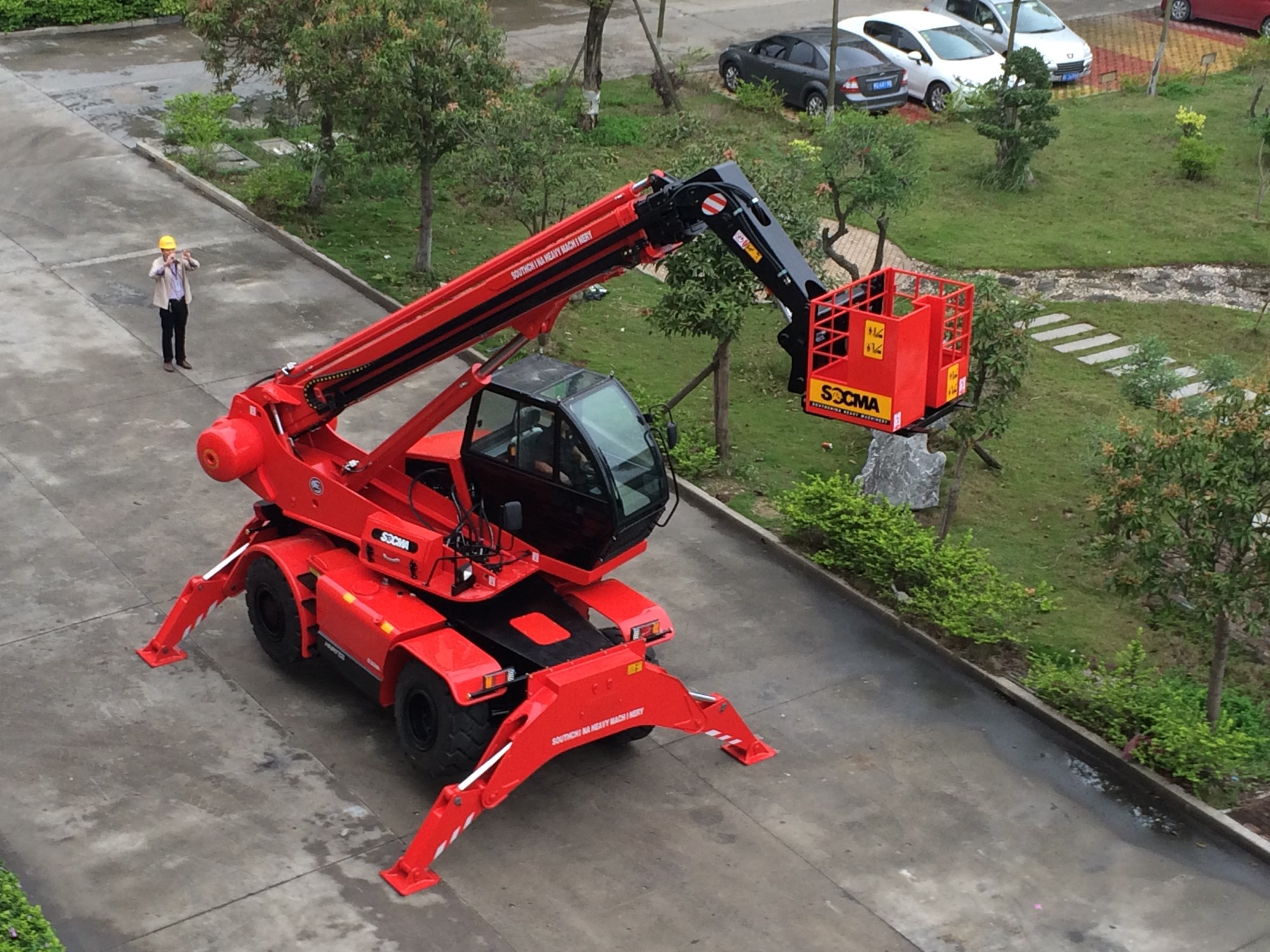

4 Tuj Rotated Telehandler
HNTR40 Tig xov tooj telehandler
HNTR40 yog lub hom phiaj multi-purpose ntxhib kev ua si forklift. Nws yog tswv yim tig lub telehandler uas tsim nyog rau kev tsim kho qhov chaw thiab ib cheeb tsam kev lag luam. HNTR40 txais cov roj diesel engine, kev sib tw hydrostatic, tsav tswj, 4WD puv log tsav, rear wheel kauj nrog tawm, hydraulic stabilizer rau boom tso, ncab thiab tshem, lifting qhov siab 15m, kwv load peev 4tons, 360 degree rotate chassis, Max kab rov tav 10500mm (pem hauv ntej kawg ntawm lub log pem hauv ntej kom thauj khoom) .Nws tuaj yeem siv raws li telescopic forklift loader, crane loader los yog ua haujlwm platform
Daim ntawv thov ntawm 4 tuj tig Telehandler
Channel daim ntawv thov: kev sib tsoo thiab lagging jack. Huab cua ua haujlwm platform nrog Arch manipulator, Kws tswj kev lag luam tuaj yeem ua tus tuav khov kho, qhov ncab thiab tshem ntawm lub telehandler boom tau paub txog kab rov tav thiab qhov siab hloov, tib lub sij hawm, lub viav vias hydraulic ntawm lub koov manipulator tau paub qhov tseeb ntawm qhov chaw ua hauj lwm Chaw ua haujlwm: tshem tawm thiab luv luv ntawm kev tsim khoom siv. Muab cov khoom siv ua ncaj nraim mus rau qhov chaw ua haujlwm, los yog kov cov khoom siv rau tsheb crane, tower crane, tuav txhua yam khoom hauv chaw ua haujlwm lossis tshem lub chaw haujlwm. Siv lub tshuab ua haujlwm aerial ua haujlwm rau cov phom lag luam, siv cov iav ua haujlwm rau cov iav ntaub thaiv kab hlau rhuav pov, Lub tuam txhab muaj: thauj thiab thauj khoom pallet rau lub thawv, kev thauj khoom thiab luv luv thauj mus rau txhua hom ntim khoom thauj khoom thiab tsiaj txhu straw nras thiab pub zaub mov noj, tshem cov pob zeb tua hluav taws thiab kev sib ntaus sib tua: siv lub dav hlau ua haujlwm rau hauv kev khiav lag luam, kev tua hluav taws thiab kev kub ntxhov
Khoom qhia ntawm 4 Tuj tig Telehandler
1, HNTR40 yog lub hom phiaj multi-purposed telescopic forklifts nrog kev ntxhib raus kab txawv. Nws yog nrog peb seem boom nrog 360 degree rotate chassis, max. Lifting qhov siab yog 15m, max. Load capacity yog 4000kg, max. Kab rov tav yog 10500 hli
2, Poob nrog Dongfeng Cummins turbo-cav nrog ntau hom tsheb ciav hlau, lub tshuab muaj zog, lub zog-txuag thiab ib puag ncig-phooj ywg. Nws muaj peev xwm ua tau raws li qhov ua haujlwm tau zoo
3, Lub zog hluav taws xob muaj nruab nrog cua-cua intercooler, uas txo cov txheej txheem ntawm lub cav, ua kom qhov cua txias ntws, nce lub zog ntawm lub cav
4, Poob nrog kev sib kis ntawm hydro-static, lub tshuab yog nrog nws tus kheej zoo adaptability thiab kev ua haujlwm muaj peev xwm. Tag nrho cov twj hydraulic, lub ntsiab valve, hydraulic qeeb, qeeb ment lub cev, lub nruab nrab teb sab qaum teb, Hydraulic lub tog raj kheej, kev tswj kev tswj valve adopts hom paub zoo.
5, Yav tas nrho hydraulic load sensing kauj system, lub xa vojvoog ntawm rear qag me me, lub steering ntawm portable thiab saj zawg zog.
Parameter ntawm 4 Tuj Rotated Telehandler
| Kev ua tau zoo | Cov ntaub ntawv qhia | |
| Yooj yim parameter | Max. Lifting qhov siab (nrog tawm txhais) | 15m |
| Rated load peev (lifting) | 4000kg | |
| Max. Kab rov tav | 10.5m | |
| Rated load @ Max. Kab rov tav ncav cuag (nrog tawm txhais) | 800kg | |
| Load center | 500 hli | |
| Kev khiav hauj lwm hnyav (tsis tau ntim rau rawg) | 16500 kg | |
| Max. Taug kev khiav ceev (km / teev) | 25 km / h | |
| Swinging ceev | 3 rpm (1500rpm) | |
| Kev kaw lus | Txoj kev kis kab mob | Hydraulic sib kis |
| Hydraulic (kev kub ceev / qis ceev) | 2/2 | |
| Kis kab mob | 2F / 2R | |
| Gradeability | 30% | |
| Traction quab yuam | 80kN | |
| Muaj peev txheej | Lub peev roj av roj | 300L |
| Roj tank muaj peev xwm | 200L | |
| Cav | Qauv | DF Cummins QSB3.9-C125-30 |
| Rated zog | 93kW / 2200rpm | |
| Torque | 480 Nm / 1350r / min | |
| Roj hom | Diesel | |
| Txheem tus qauv | Teb chaws Ⅲ | |
| Cua txias hauv dej txias | Cua-cua intercooler | |
| Hydraulic zog | Siab | 28 MPa |
| khiav | 300 L / min | |
| Steering system | Steering iav hom | thauj ntsaws pa tsheb tag nrho hydraulic thaum uas tig kauj |
| Siab | 16 MPa | |
| Tsheb qes qes hom | Transverse hydraulic lub tog raj kheej steering qauv | |
| Steering lub | 40 ° | |
| Nres hom | Kev pab nres | Clamp-disc nres |
| Nres pa cua txias | 0.684-0.785 MPa | |
| Nres tsheb nres | Cua nrawm nres nres | |
| Qhov loj qhov dav | Qhov siab tshaj | 3300 hli |
| Qhov dav dav | 2570 hli | |
| Zuag qhia tag nrho ntev (nrog diav rawg) | 7330 hli | |
| Log puag | 2800 hli | |
| Lub log pem hauv ntej tig | 2030 hli | |
| Tsheb log tread | 2030 hli | |
| Hauv av clearance (tawm txhais) | 350 hli | |
| Tig ib qho vojvoog (sab nraud) | ≥ 4800 hli | |
| Kev khiav hauj lwm txoj haujlwm | Nruab Nrab | |
| Nres hom | Tsheb hom | |
| Aerial ua haujlwm platform | Ntev * dav * qhov siab | 1200 × 800 × 970mm |
| Tawm tswv yim zoo | Hydraulic tawm txhais tsis tau. | 2F / 2R |
| Ua haujlwm boom | Telescopic ua hauj lwm boom | 3-tso |
| Diav | Ntev * dav * tuab | 1000 × 122 × 50 hli |
| Max. Nrug ntawm ob rab phom | 710 hli | |
| Pem hauv ntej / Tsheb tilt degree | 12 ° / 120 ° | |
| Txheem lub log (lub nkoj) | (Pem hauv ntej / Tsheb) Log Number | 2/2 |
| (Pem Hauv Ntej / Tsheb) tsav tsheb npav | 2/0 | |
| (Pem hauv ntej / Tsheb) log dimension | 45 × 16-20 (36PR) | |
