SOCMA 3 Tuj 5 Tuj 6 Tuj 10 Tuj 25 Tuj Diesel Sab Loader Forklift Sab Loading Forklift Nrog Euro V Cav
SOCMA 25 TON Side Loader FORKLIFT
3 tuj rau 25 tuj sab loader forklift, sab forklift, sab loading forklift, sab forklift rau cov ntaub ntawv ntev,
sab loader forklift

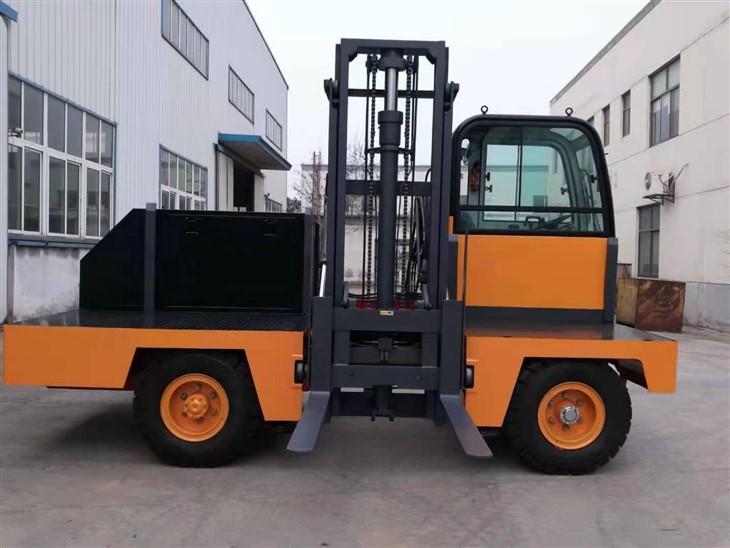

SOCMA Side Loader Forklift, Lub 25 tuj sab-mounted forklift mast, lifting mechanism thiab diav rawg nyob rau hauv nruab nrab ntawm lub forklift thiab tuaj yeem txav mus raws kab kab rov tav. Lub forklift yog nyob rau sab ntawm lub forklift, thiab muaj lub platform nqa khoom ntawm sab.
1.Rated peev: 25000kg
2.Max. Lifting qhov siab: 4500mm
3.Load chaw: 1200mm
4.Fork ntev: 2500mm
5. Cav: Volvo TAD871VE, EURO IV em ission standard
6.Transmission: Lub teb chaws Yelemees ZF 3WG211, pem hauv ntej 3 / rear 3
7. Pem hauv ntej qag thiab nres: Lub teb chaws Yelemees Kesseler
8.Hydraulic qhov chaw: Tebchaws USA Parker
9.Closed cab nrog cua txias
SOCMA 25 TON Side Loader FORKLIFT
3 tuj rau 25 tuj sab loader forklift, sab forklift, sab loading forklift, sab forklift rau cov ntaub ntawv ntev,
SOCMA 25 TON Side Loader FORKLIFT
3 tuj rau 25 tuj sab loader forklift, sab forklift, sab loading forklift, sab forklift rau cov ntaub ntawv ntev,
Technical parameter:
|
FDS sab loader forklift technical parameter |
||||
|
TSIS MUAJ. |
Cov khoom |
Chav tsev |
Specs. |
|
|
1 |
Rated peev |
kg |
25 000 kg |
|
|
2 |
Zuag qhia tag nrho ntev |
Tsis muaj rab rawg |
mm |
7810 |
|
Nrog rab rawg |
7810 |
|||
|
3 |
Dav dav |
Lub log dav |
3850 |
|
|
Ncej dav |
3900 |
|||
|
4 |
Tag Nrho Qhov Siab |
Mast qhov siab ( diav rawg qis) |
4600 |
|
|
Qhov siab rau lub taub hau guard |
3800 |
|||
|
Zuag qhia tag nrho qhov siab nkhaus tsa (nrog backrest) |
||||
|
5 |
wheelbase |
4800 |
||
|
6 |
Pem hauv ntej Overhang |
1300 |
||
|
7 |
Pem hauv ntej log tread |
3250 |
||
|
8 |
Tsheb log tsheb |
3250 |
||
|
9 |
Min av clearance |
Mast hauv qab (tsis muaj load / puv) |
300 |
|
|
Ncej central (tsis muaj load / tag nrho) |
300 |
|||
|
10 |
Max.lifting qhov siab tsis muaj |
4500 |
||
|
11 |
Free nqa |
0 |
||
|
12 |
Mast qaij lub kaum sab xis (pem hauv ntej / nram qab) |
（degree） |
5/3.5 |
|
|
13 |
Standard tsheb hnyav (tsis muaj load) |
kg |
33000 |
|
|
14 |
Max.lifting qhov siab (tsis muaj load) |
mm/s |
380 |
|
|
15 |
Max.lifting qhov siab (nrog load) |
320 |
||
|
16 |
Min. Tig lub vojvoog |
mm |
7200 |
|
|
17 |
Max.travelling ceev (tsis muaj load) |
km/h |
26 |
|
|
18 |
Max.travelling ceev (nrog load) |
23 |
||
|
19 |
Gradeability (nrog load) |
% |
10 |
|
|
20 |
Max.Traction (nrog load) |
Kn |
15 |
|
|
21 |
Chaw thau khoom |
mm |
1200 |
|
25 tuj sab loading forklift tsheb, Lub mast, lifting mechanism thiab diav rawg ntawm sab forklift yog nyob rau hauv nruab nrab ntawm lub forklift thiab muaj peev xwm txav raws kab rov tav qhia rails. Lub forklift yog nyob rau sab ntawm lub forklift, thiab muaj lub platform nqa khoom ntawm sab. Thaum tus diav rawg nce raws lub mast mus rau qhov siab tshaj qhov siab ntawm lub cargo platform, lub mast retracts raws cov kev taw qhia rail, txo tus diav rawg, thiab cov cargo muab tso rau hauv lub cargo platform ntawm lub forklift. Lub mast thiab diav rawg ntawm sab forklift yog nyob rau ntawm ib sab ntawm lub tsheb lub cev. Lub tsheb lub cev nkag mus rau hauv cov channel, thiab rab rawg ntsib cov khib nyiab lossis pawg, yog li kev thauj khoom thiab kev thauj khoom tsis tas yuav tsum tig ua ntej ua ntej ua haujlwm.
Muaj ob qhov tseem ceeb ntawm kev ua haujlwm forklift:
①Nyob rau hauv cov txheej txheem nkag mus thiab tawm hauv lub tsev rau khoom, lub tsheb lub cev nkag mus rau hauv txoj kev, thiab tus diav rawg ntsib lub khib lossis pawg, yog li. Thaum thauj khoom thiab tshem tawm cov haujlwm, tsis tas yuav tsum tig ua ntej thiab tom qab ntawd ua haujlwm. Cov yam ntxwv no ua rau sab forklifts haum rau kev ua haujlwm nqaim;
②Nws muaj txiaj ntsig zoo rau cov khoom tshwj xeeb ntawm cov khoom siv ntev ntev, vim tias cov khoom siv ntev yog tib yam rau lub cev lub tsheb thiab tsis txwv rau qhov dav ntawm txoj kab. Pneumatic log tsheb feem ntau yog siv rau kev ua haujlwm sab nraum zoov, thiab cov log tsheb yog feem ntau siv rau kev ua haujlwm sab hauv tsev. Sab forklift tuaj yeem nqa cov khoom ntev ntawm qhov nrawm nrawm, nrog lub peev xwm nqa siab tshaj plaws ntawm 40 tons, qhov siab tshaj plaws nqa qhov siab ntawm 3 meters, thiab qhov siab tshaj plaws ntawm 30 km / h.
SOCMA 25 TON Side Loader FORKLIFT
3 tuj rau 25 tuj sab loader forklift, sab forklift, sab loading forklift, sab forklift rau cov ntaub ntawv ntev,
SOCMA 25 TON Side Loader FORKLIFT
3 tuj rau 25 tuj sab loader forklift, sab forklift, sab loading forklift, sab forklift rau cov ntaub ntawv ntev,
Technical parameter:
|
FDS sab loader forklift technical parameter |
||||
|
TSIS MUAJ. |
Cov khoom |
Chav tsev |
Specs. |
|
|
1 |
Rated peev |
kg |
25 000 kg |
|
|
2 |
Zuag qhia tag nrho ntev |
Tsis muaj rab rawg |
mm |
7810 |
|
Nrog rab rawg |
7810 |
|||
|
3 |
Dav dav |
Lub log dav |
3850 |
|
|
Ncej dav |
3900 |
|||
|
4 |
Tag Nrho Qhov Siab |
Mast qhov siab ( diav rawg qis) |
4600 |
|
|
Qhov siab rau lub taub hau guard |
3800 |
|||
|
Zuag qhia tag nrho qhov siab nkhaus tsa (nrog backrest) |
||||
|
5 |
wheelbase |
4800 |
||
|
6 |
Pem hauv ntej Overhang |
1300 |
||
|
7 |
Pem hauv ntej log tread |
3250 |
||
|
8 |
Tsheb log tsheb |
3250 |
||
|
9 |
Min av clearance |
Mast hauv qab (tsis muaj load / puv) |
300 |
|
|
Ncej central (tsis muaj load / tag nrho) |
300 |
|||
|
10 |
Max.lifting qhov siab tsis muaj |
4500 |
||
|
11 |
Free nqa |
0 |
||
|
12 |
Mast qaij lub kaum sab xis (pem hauv ntej / nram qab) |
（degree） |
5/3.5 |
|
|
13 |
Standard tsheb hnyav (tsis muaj load) |
kg |
33000 |
|
|
14 |
Max.lifting qhov siab (tsis muaj load) |
mm/s |
380 |
|
|
15 |
Max.lifting qhov siab (nrog load) |
320 |
||
|
16 |
Min. Tig lub vojvoog |
mm |
7200 |
|
|
17 |
Max.travelling ceev (tsis muaj load) |
km/h |
26 |
|
|
18 |
Max.travelling ceev (nrog load) |
23 |
||
|
19 |
Gradeability (nrog load) |
% |
10 |
|
|
20 |
Max.Traction (nrog load) |
Kn |
15 |
|
|
21 |
Chaw thau khoom |
mm |
1200 |
|
Cim npe nrov: socma 3 tuj 5 tuj 6 tuj 10 tuj 25 tuj diesel sab loader forklift sab loading forklift nrog euro v cav, Tuam Tshoj, manufacturers, hoobkas, customized
