SOCMA 10 TUB RHIAV-PARGING-Them Tsheb
2.Easy thiab xis nyob ua haujlwm
3.Com nrho cov lus qhia kev nyab xeeb rau kev nyab xeeb
4.MEES ib puag ncig ib puag ncig
5. Tus Neeg Tiv Thaiv Kub Siab

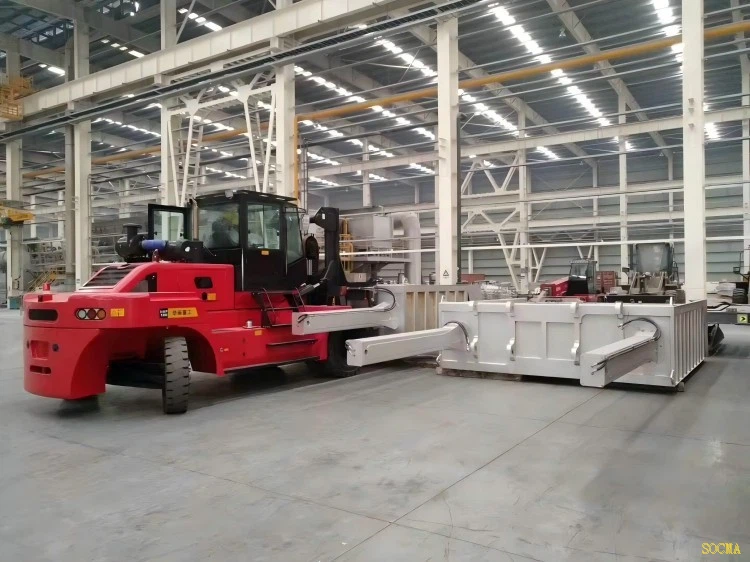

1.10ton rauv-them lub tsheb taw qhia
HNF Series Cov Forklifts yog Forklifts yog Socma cov khoom lag luam chij, uas nws tau tsim kho nws tus kheej. Lub tsheb muaj cov khoom tseem ceeb yog tsim los ntawm cov hom muaj npe hauv zos lossis thoob ntiaj teb. Tom qab xyoo ntawm nag lossis daus, kev siv nyiaj so hauv tshav dav hlau, cov chaw nres nkoj, chaw khaws khoom, tuav, thiab lwm yam kev lag luam. Nws tag nrho cov tshuab nplij, ruaj khov, kev nyab xeeb, thiab kev ruaj ntseg yog industring-ua, khwv tau los ntawm cov neeg siv khoom thoob ntiaj teb.
Cov qauv ntawm cov cub hluav taws-them cov tsheb muaj ntawm peb qhov chaw tseem ceeb: lub cev, lub Hopper thiab lub tsheb thav duab. Lub carriage ua tiav nws txoj kev ncig thiab tig taw taw. Kev nqa ib feem ua tiav qhov kev sib tw nqa thiab tilting txiav txim ntawm kev cia siab; Telescopic scraping mechanism ua tiav kev ua ntawm scraping tawm cov khoom hauv kev cia siab.
2.10ton rauv-them cov tsheb specifications
| Yam | Cov lus qhia | |
|
Tus neeg yuav khoom nyob hauv qab huab cua |
Tsis tshua muaj kub tshaj plaws | 40.4 Qib |
| Tsis muaj tseeb tsawg kawg nkaus kub | -10. 7 Qib | |
| Huab cua siab tshaj plaws | 18.0m/s | |
|
Khoom Siv Ua Haujlwm |
Kub ntawm rauve nkag | Tsawg dua los yog sib npaug rau 750 degree |
| Kub nyob rau hauv lub cub tawg |
700 txog 750 degree (rauv chamber kub: 750 txog 850 degree) |
|
|
Lub ntsiab kev tsis khoom ntawm cov cuab yeej |
Hopper Qhov ntev | 4150mm * 3500mm * 1000mm |
| Cov khoom siv ntawm Hopper | Lub teb chaws Q460 | |
| Nqi thauj khoom | 10t | |
| Rated Mass ntawm Tshuab Tiav |
33t (tsis suav nrog qhov hnyav plhaw, Hopper Nyhav yog ncig 8t) |
|
| Ntsug Lifting stroke ntawm kev cia siab |
1,400 hli (Mekas rau qhov siab ntawm lub cub tawg) |
|
| Ntev ntawm tshuab tiav nrog Hopper | Tsawg dua 10000mm | |
| Qaij kaum sab xis ntawm txoj kev them nyiaj cia siab | {{0 {}} degree -6 degree | |
| Rettract kev ceev ntawm scraping tis | {{0 {}} rau 30 hli / s (kho tau) | |
| Qhov tsawg kawg hauv av cantance | 200 hli | |
| Qhov ntau tshaj plaws scraping kev quab yuam ntawm scraping tis | > 40knk | |
| Ntau Tshaj Khiav Ceev | > 20km / h | |
| Tag nrho cov kev sib cav sib luag | >10 degree | |
| Lub Hwj Thuam Daim Ntawv | Cummins Diesel Cav Qsl9. {3- C220 | |
| Ncig Tebchaws Tsav | Pem Hauv Ntej Tsav thiab Tsheb Kauj | |
| Nres hom | Pneumatic Roj Disc nres | |
| Kev Hloov Chaw Ua Haujlwm | Kev Hloov Hluav Taws Xob Hluav Taws Xob Hluav Taws Xob | |
| Steering iav hom |
PUAB NPLOOJ TAV HYDRAULIC Kauj |
Kev Ua Tau Zoo lav Tus Nqi:
| Kev piav txog | Lav muaj nqi |
| Nqi thauj khoom | 10t |
| Them qhov deb | 3.5m |
| Them cov kev nthuav dav nrawm | {{0 {}} hli / s (kho tau) |
| Qhov Siab Muaj Peev Xwm | Ntau tshaj 10 degree |
| Max. Ncig tebchaws ceev | 20km / h |
3.10ton rauv-them cov tsheb cov lus qhia
Cov qauv ntawm cov cub hluav taws-them cov tsheb muaj ntawm peb qhov chaw tseem ceeb: lub cev, lub Hopper thiab lub tsheb thav duab. Lub carriage ua tiav nws txoj kev ncig thiab tig taw taw. Kev nqa ib feem ua tiav qhov kev sib tw nqa thiab tilting txiav txim ntawm kev cia siab; Telescopic scraping mechanism ua tiav kev ua ntawm scraping tawm cov khoom hauv kev cia siab. Kev Hloov Siab Hopper Kev Hopper, Cab-Ua Kev So Hopper.
Lub cub hluav taws xob-them hluav taws xob yog siv los ntawm Cummins lub cav, nrog lub zog muaj zog thiab kev saib xyuas yooj yim. Tus neeg teb xov tooj tswj cov nyiaj nqa thiab tilting ntawm txoj kev cia siab plhaw thiab telescopic txav ntawm lub scraping tis los ntawm txhais tau tias ntawm ob txoj haujlwm ua haujlwm. Kev ua haujlwm them ntawm cov cub tawg-them yog nqa tawm los ntawm tus neeg teb xov tooj ntawm cov neeg ua haujlwm ntawm kev ua haujlwm zoo nkauj joystick hauv lub tsheb. Kev tswj hwm ntawm kev taug kev thiab kev coj ntawm lub cub tawg-them yog tswj hwm lub tsheb, nrog kev tswj hwm kom zoo li qub, ua rau muaj kev tsim txom qis thiab tsis muaj peev xwm ntawm kev ua haujlwm ua haujlwm. Them cov kev hloov plhaw yooj yim thiab nrawm, tuaj yeem hloov pauv kev cia siab sai.
Txhua tus qauv tsim muaj nyob hauv cov qauv metric thiab ua raws li ISO cov qauv; Txhua Bearings nyob hauv cov qauv hauv ntiaj teb.
4.10ton rauv-them lub tsheb tshuab
Lub Sij Hawm Lub Sij Hawm Zoo: 1 Xyoo lossis 2000 Sijhawm ua haujlwm vim yog thawj zaug tuaj txog.
Lub sij hawm xa tuaj: 120 hnub ua haujlwm tom qab tau txais 30% tso nyiaj.
Kev Thauj Mus Los: 1x40Fr, Roro lossis Cov Neeg Muaj Tsheb Loj
Cim npe nrov: Sofak 10 Nyhav Ib Toor-them-them, Tuam Tshoj, tuam ntxhab, Hoobkas, Mekas
