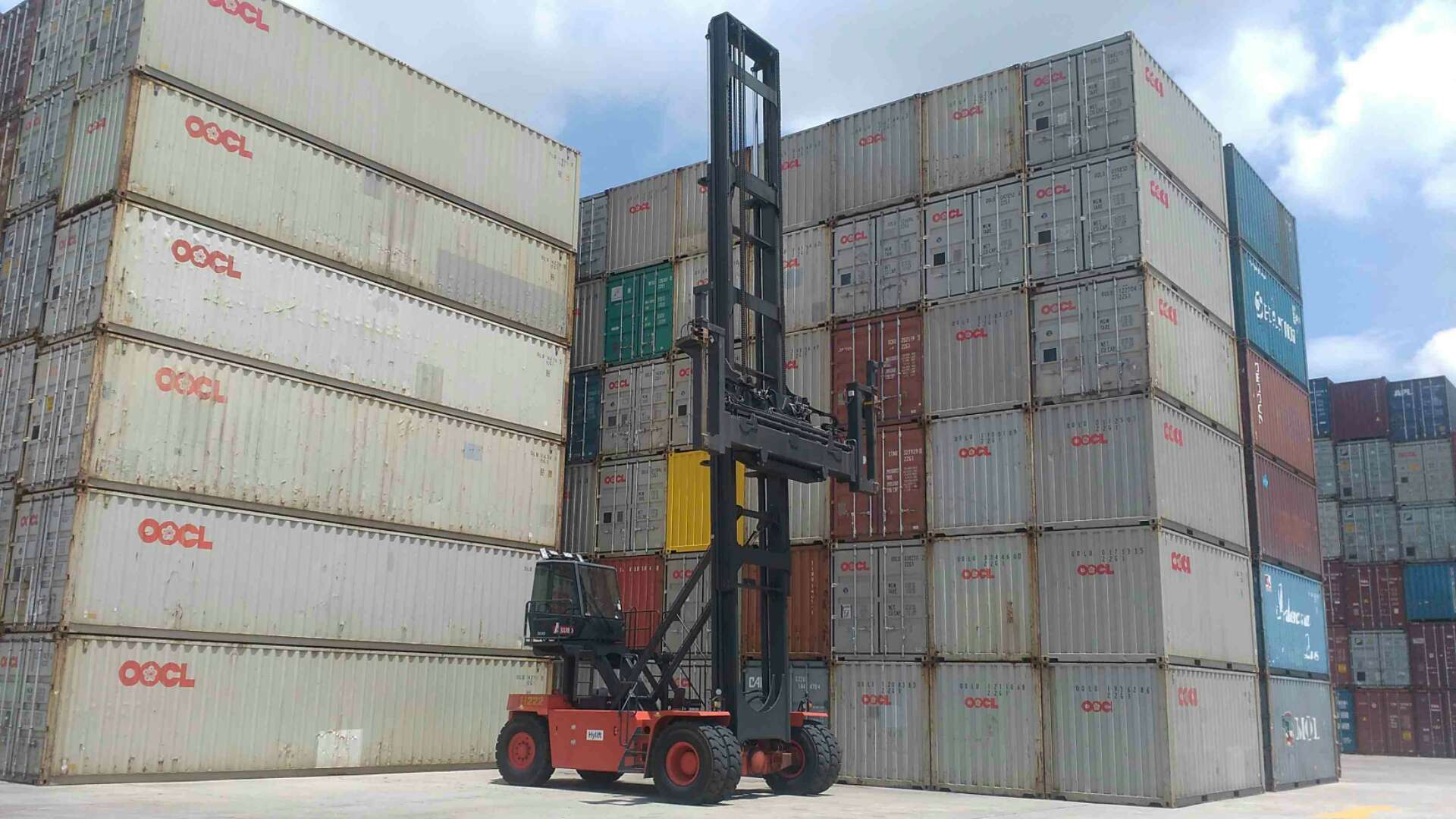

9 Tuj Thawv Txuas Rau Tes
High Quality Hwjchim Cav
Txuas nrog lub cav cav cummins, nrog kev tswj hluav taws xob hluav taws xob kom tswj tau hluav taws xob noj
Txuas ntxiv nrog lub tshuab fais fab thiab kev ua kom zoo dua Ua kom muaj hwj chim kom tau raws li ntau hom kev ua dej num Ua raws nraim nrog EU theem III roj emission txheem Kev tsav lub tshuab hluav taws xob kom lub suab tsis tshua muaj suab nrov Lub tshuab hluav taws xob tiv thaiv kaw lub cav kom tsis txhob raug
qhov puas tsuaj thaum lub siab roj / siab kub
Kessler D81 Tsav Qag
Kessler tsav qij, pov thawj zoo rau heavy duty truck, dav khiav, 2-theem txo gear box, muaj zog qis cev optimized rau hnyav loading mob. Kev tsav tsheb ntub dej yog tsis pub dawb.
Txoj kev tsav tsheb no ua rau poob siab tsam kom ruaj ntseg thiab lub neej ntev ntev.
Qhov chaw tsav dav dav
Lub tshav dav hlau txais qhov qauv ergonomic tseeb, Yooj yim & elegant, khab seeb & xis.
Txuas nrog cov xim loj loj rau kev nyeem ntawv yooj yim ntawm lub tsheb., Lub tsev ntim khoom siv los tsim kom muaj kev ruaj ntseg thiab kev nplij siab ntawm tus neeg teb xov tooj. Zoo nruj, qhov rooj &
Qhov rais qhib thiab kaw tau yooj yim thiab khov kho.
Ntaus nrog ntau yam kev ua si joystick, Tag nrho cov kev tswj yog ntawm koj lub ntsis ntiv tes.
Cov khoom kim heev yuav tsum tau kho raws li tus tsav tsheb qhov siab thiab qhov hnyav kom paub tseeb tias qhov kev tsav tsheb zoo tshaj plaws thiab kev ua haujlwm siab tshaj plaws.Qhov kev nyab xeeb ntawm kev ruaj ntseg los xyuas kom pom kev zoo txhua yam.
Nres nrog Cua Txias nrog cua kub ua haujlwm kom haum ua hauj lwm hauv txhua qhov chaw.
Xim Zaub
Ib cov xim txhim khu xim qhia tau hais tias qhov nyhav nyhav / lub nrawm kaum / lub qhov siab / lub siab / lub zog / cov roj / yuam kev thiab lwm yam.
Qhov kev tiv thaiv ceev lub cev pab ua haujlwm kom ua haujlwm zoo
Qhov Kev Tiv Thaiv Tsis Siv
ZF rho tawm kis tau
Nws pib-kis tau zoo nrog 5 forwards / 3 rov qab ceev, ua rau lub lag luam kom du thiab qhov kev lag luam zoo
Kev saib xyuas tsawg kawg, lub neej ntev ntev
Nchuav muaj nuj nqi kom paub meej txog qhov ua tau zoo
Reversing interlock, ceev tswj downshift kev tiv thaiv
Kev Cuab Yeej:
Nrog rau kev ruaj ntseg ntawm lub rooj zaum
Nyob rau hauv rooj plaub ntawm tus tsav tsheb tsis seated, txiav tawm tag nrho cov hydraulic, tsav ua haujlwm
Qhia tau tias tus neeg tau txais kev qhia tawm
Liab daj ntsuab qhov taw qhia teeb Teeb teeb liab qhia txog lub tshuab luam yeeb, qhib lub xeev Txwv tsis pub muaj qhov txawv txav, txo kev lag luam
Lom zem zaub thiab tshaj qhov kev txwv limiting
Load rating of 90%, suab tswb Tshaj tawm cov load load, yuav txiav tawm ntawm txoj haujlwm tshem tawm.
Muaj peev xwm tuaj kuaj mob
Tso cav, gearbox thiab lwm yam txhaum cai Tso roj tsheb, qhov siab, kub thiab lwm yam kev ceeb toom
Muab ob sab tes nres tsheb nres tawm
Teem kom tus tsav tsheb khiav txoj haujlwm
Kev nyab xeeb ntawm cov tshuab luam yeeb thiab tshuab hlwb hlau
Tsuas yog tus nqi qis tshaj rau qis qis dua, zom zaws kom tsis txhob muaj zog Cov qauv siv qis ntawm kev tuav pov hwm thiab kev siv
Parameter ntawm 9 Tuj Nplai Thawv Tes
| PERFORMANCES | |||||
| Qauv | SECH90 / 8 | SECH90 / 7 | SECH80 / 7 | SECH80 / 6 | |
| Load peev | Kg | 9000 | 9000 | 8000 | 8000 |
| Cov txheej txheem ntau tshaj plaws | 8 | 7 | 7 | 6 | |
| Nqa ceev, laden / unladen | m / s | 0.55 / 0.60 | 0.55 / 0.60 | 0.55 / 0.60 | 0.55 / 0.60 |
| Txiav ceev, laden / unladen | m / s | 0.60 / 0.60 | 0.60 / 0.60 | 0.60 / 0.60 | 0.60 / 0.60 |
| Mus ncig teb chaws ceev, laden / unladen | km / h | 26/28 | 26/28 | 25/27 | 25/27 |
| Nce toj nce toj, laden / unladen | % | 38 / - Lub sij hawm | 38 / - Lub sij hawm | 30 / - | 30 / - |
| Sib zog ua kom sib zog | kN | 157,5 | 157,5 | 107.5 | 107.5 |
| DIMENSIONS | |||||
| Wheelbase | y (hli) | 4520 | 4520 | 4020 | 4020 |
| Qhov siab ntawm mast, txo qis | h 1 (hli) | 12399 | 11111 | 11091 | 9600 |
| Tilt angle (forward / backward) | α / β (/ °) | 3/4 | 3/4 | 3/4 | 3/4 |
| Qhov siab ntawm mast, ncua | h 4 hli (hli) | 21818 | 19244 | 19204 | 16660 |
| Qhov siab tshaj plaws | h 6 (hli) | 4326 | 4326 | 4326 | 4326 |
| Qhov siab, tus tswj hwm lub rooj | h 7 (hli) | 3226 | 3226 | 3206 | 3206 |
| Twistlock qhov siab, txo qis | h 13 (hli) | 2290 | 2290 | 2290 | 2290 |
| Qhov siab tshaj plaws twistlock qhov siab | h3 (hli) | 21216 | 18642 | 18600 | 16290 |
| Zuag qhia tag nrho | l 1 (hli) | 6850 | 6850 | 6450 | 6450 |
| Ntev mus spreader lub ntsej muag | l 2 (hli) | 6682 | 6682 | 6277 | 6277 |
| Qhov dav dav | b 1 / b 2 (hli) | 4120/2570 | 4120/2570 | 3627/2398 | 3627/2398 |
| Dav ntawm kab tawm 20 '/ 40' | b 3 (hli) | 6050/12150 | 6050/12150 | 6050/12150 | 6050/12150 |
| Tig kev vojvoog | Wa (hli) | 6300 | 6300 | 5700 | 5700 |
| Wheelspan, Lub log pem hauv ntej | b10 (hli) | 3280 | 3280 | 2880 | 2880 |
| Wheelspan, Tsheb log | b11 (hli) | Xyoo 2171 | Xyoo 2171 | Xyoo 2068 | Xyoo 2068 |
| POB ZEB | |||||
| Kev pabcuam hnyav | kg | 38680 | 38280 | 33800 | 32800 |
| Qag load nrog load, pem hauv ntej / nram qab | kg | 37220/10460 | 36610/10670 | 29050/10750 | 28650/10150 |
| Axle load tsis load, pem hauv ntej / nram qab | kg | 22660/16020 | 22480/15800 | 20100/13700 | 19700/13100 |
| CAV | |||||
| Qauv | SECH90 | SECH80 | |||
| Cav Chaw Teeb Khoom / Hom | Cummins / QSB6.7 | Cummins / QSB6.7 | |||
| Lub thawv hlaus tawm / tawm | 6/6700 cm 3 | 6/6700 cm 3 | |||
| Rated zog | 164Kw @ 2200 rpm | 129Kw @ 2200 rpm | |||
| Tshaj siab tshaj plaws | 949NM @ 1500 rpm | 800NM @ 1500 rpm | |||
| Rated tam sim no ntawm alternator | 100 A | 70 A | |||
| Roj teeb | 24 V (2 x 12/110) | 24 V (2 x 12/110) | |||
| NTSWG | |||||
| Qauv | SECH90 | SECH80 | |||
| Chaw tsim tshuaj / hom | ZF / 3WG211 pib | ZF / 3WG211 pib | |||
| Clutch - hom | Torque Converter | Torque Converter | |||
| Kis | Nws pib ua haujlwm / Qhib | Nws pib ua haujlwm / Qhib | |||
| Iav tooj | 3 F / 3 R | 3 F / 3 R | |||
| NRES LOJ | |||||
| Kev pab nres: Kev ntub dej | |||||
| Nres tsheb nres: Nres nres thaum lub zog ntawm | |||||
| DRIVE AXLE | |||||
| Qauv | SECH90 | SECH80 | |||
| Tsav qaum muag chaw tsim tshuaj paus | KESSLER / Lub teb chaws Yelemees | KESSLER / Lub teb chaws Yelemees | |||
| Hom | D81PL488 - NLB | D81PL478 - NLB | |||
| STEER AXLE | |||||
| Qauv | SECH90 | SECH80 | |||
| Steering axle Chaw tsim tshuaj paus | OMCI / Ltalis | Weilong | |||
| Hom | ASF | Z16A1 | |||
| Steering hom-Ib leeg kheej kheej | Ob chav txiav txim ob | Ob chav txiav txim ob | |||
| TIRES | |||||
| Tsav log | 14.00-24 28PR | 12.00-24 24PR | |||
| Kev tsav lub log | 14.00-24 28PR | 12.00-24 24PR | |||
| Hom | Pneumatic cov log tsheb | Pneumatic cov log tsheb | |||
| Siab | 10 bar | 10 bar | |||
| Nqi, Pem Hauv Ntej / Tsheb | 4/2 | 4/2 | |||
