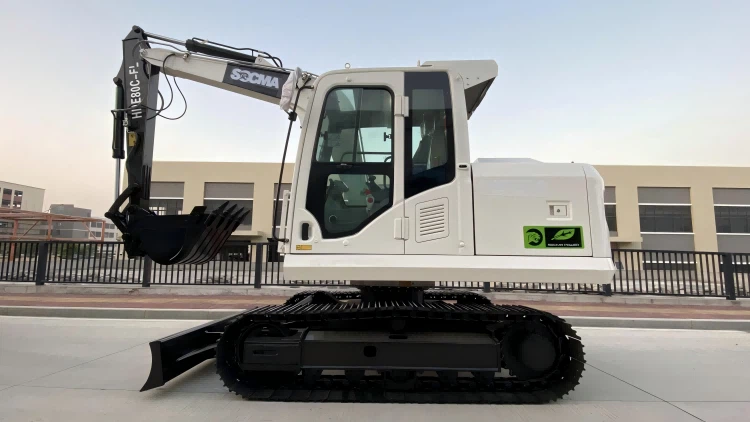

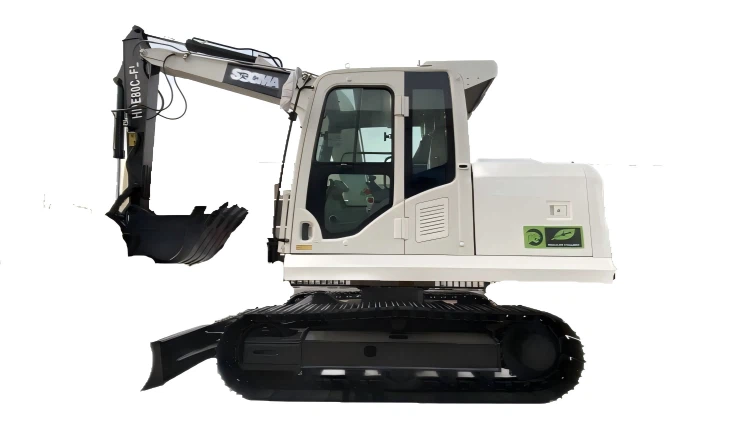

SOCMA 8T Fais Crawler Excavator Hne80c-El
2. Tus muaj zog ua tau zoo: Tas Nrho Cov Hlau nplaum Lub Cev Muaj Zog + Lub Zog Cia Lub Zog Rau Cov Lus Teb Nrawm thiab Muaj Zog Zog
3. Kev ua haujlwm ntse: kev hloov pauv hloov tshiab-kev hloov pauv hloov tshiab-kev hloov kho tshiab rau cov ntawv thov ntau yam
4. Precision Tswj: Load-confing hydraulic system ua haujlwm du thiab raug
1. so suma Hne80c-el taw kev
HEAKE80C-el {{2} tuj tuj hluav taws xob cia lub tshuab (141KH) rau kev siv hluav taws xob zoo nkauj (141) rau kev siv hluav taws xob zoo Ntse ntse ntse-ceev kev hloov kho kom nruj thiab lub nra-conensing hydraulic system txuas ntxiv txhim kho cov khoom lag luam.
2. summa Hne80c-El Xaj
| Ua yeeb yam | Chaw ua uas tsis tau haus | |
| Qhov yooj yim parameter |
Kev khiav hauj lwm loj, kg |
Tsawg dua los yog sib npaug rau 8500 |
|
Khiav Tag Nrho, Hli |
1750 |
|
|
Crawler log tsheb, hli |
2142 |
|
|
Tig Raidius, Q |
1965 |
|
|
Min . mak av clearance, mm |
380 |
|
|
Zuag qhia tag nrho ntev, hli |
5970 |
|
|
Zuag qhia tag nrho qhov siab, hli |
2600 |
|
|
Tshaj tag nrho qhov dav, hli |
2190 |
|
|
Dav ntawm cov qauv sab saud |
2100 |
|
|
Cab Qhov siab, hli |
2600 |
|
|
Lub peev xwm thoob, M 3 |
0.1-0.28 |
|
|
Max . qhov teeb meem,% |
Ntau dua los yog sib npaug rau 70% (35 degree) |
|
|
Txheem Dav Dav, hli |
450 |
|
|
Max . drivig ceev, km / teev |
3.8/2.5 |
|
|
Qhov Txheej Txheem Ua Haujlwm Siab, Mpa |
28 |
|
|
Kev tig ceev, R / min |
11.5 | |
|
Max . khawb quab yuam, kn |
50 | |
| Muaj peev xwm |
Roj Tank Muaj Peev Xwm, L |
200 |
|
Roj teeb muaj peev xwm, lub sij hawm ... |
109.3 | |
|
Tsim tawm tshuab hluav taws xob |
Tus qauv |
Hp 12517- g202w-r4u4 |
|
Rated Hwj Chim, KW |
46.5 | |
|
Max . fais fab, kw |
75 | |
|
Max . torque, nm / ib lub sijhawm teev (s) |
400/20 | |
|
Max .} nrawm nrawm nrawm |
3000 |
|
|
Kev ntsuas kev nrawm nrawm |
2000 | |
| HYDRAUYyim CAV |
Siab, mpa |
28 |
|
Ntws, l / min |
160 | |
| DC / DC tsis muaj |
Interprast voltage, v |
DC540 |
|
Cov Zis Voltage, V |
DC27 |
|
