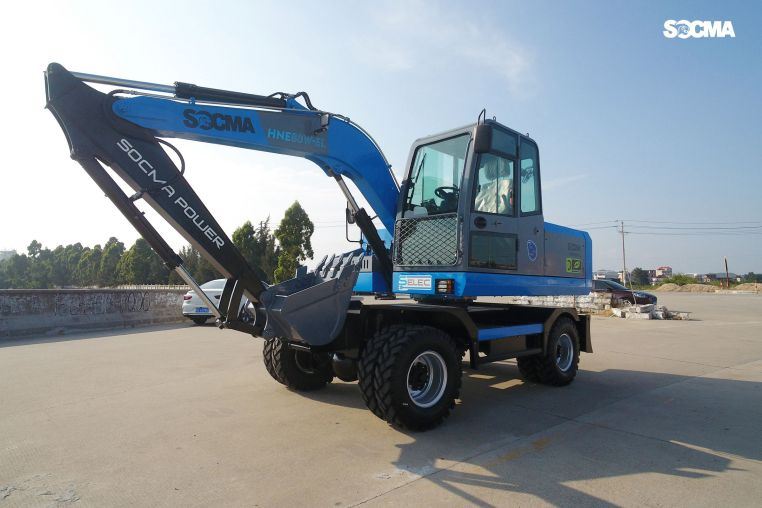

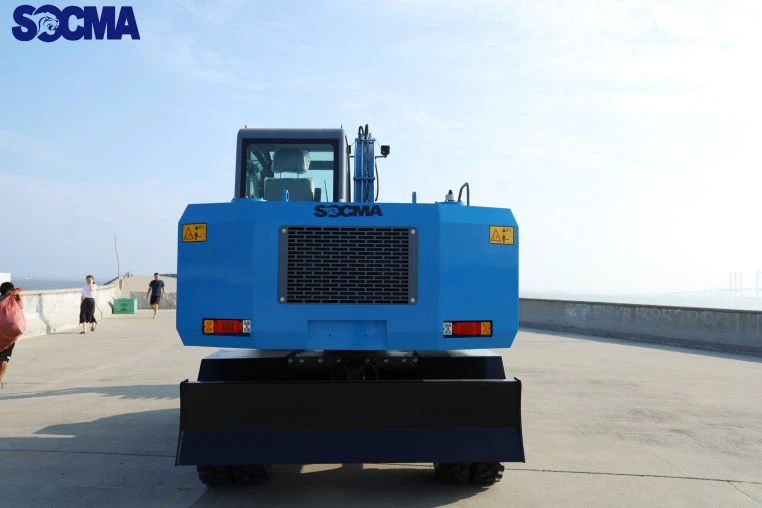

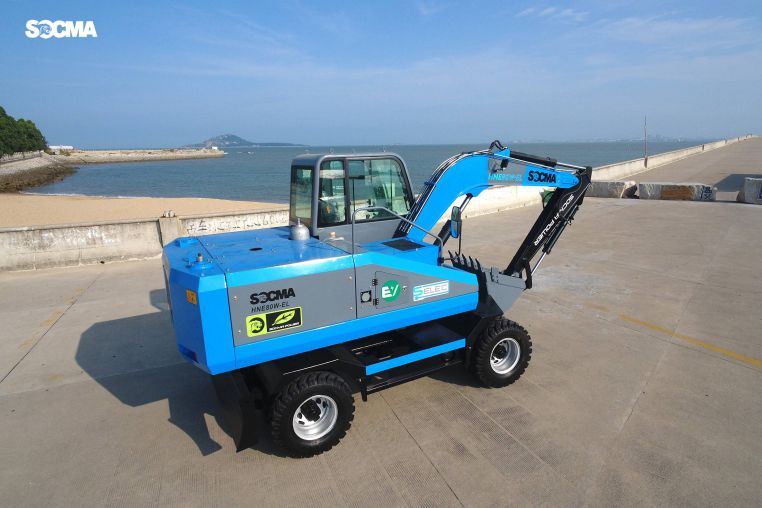

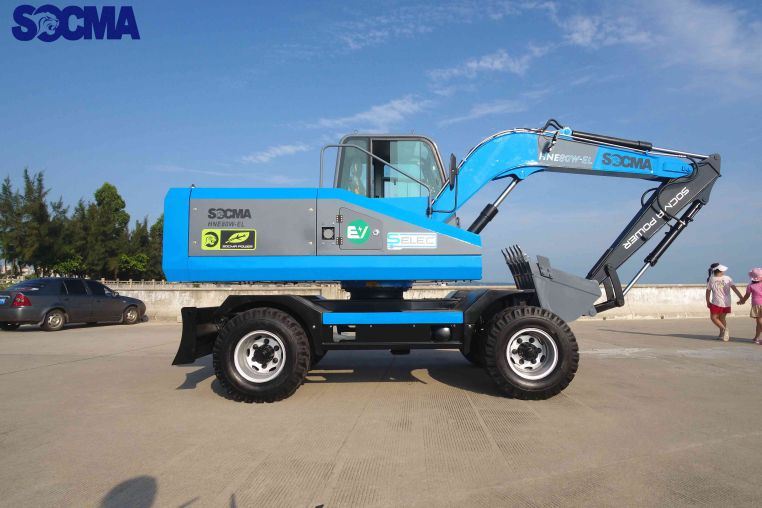

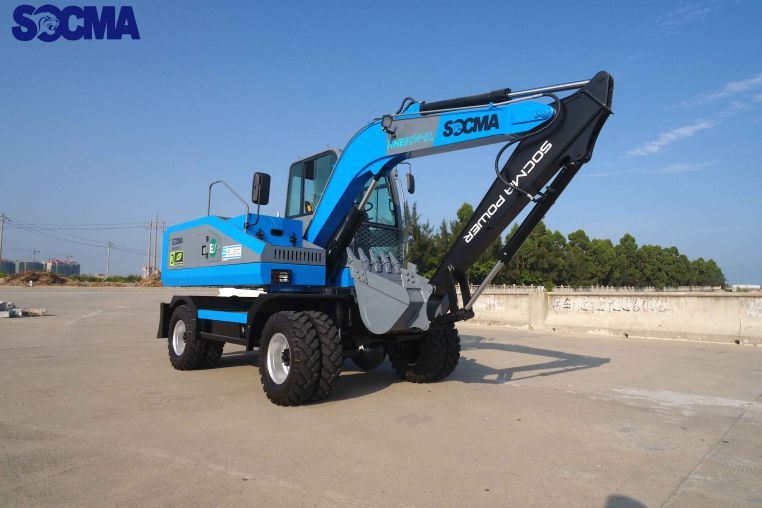

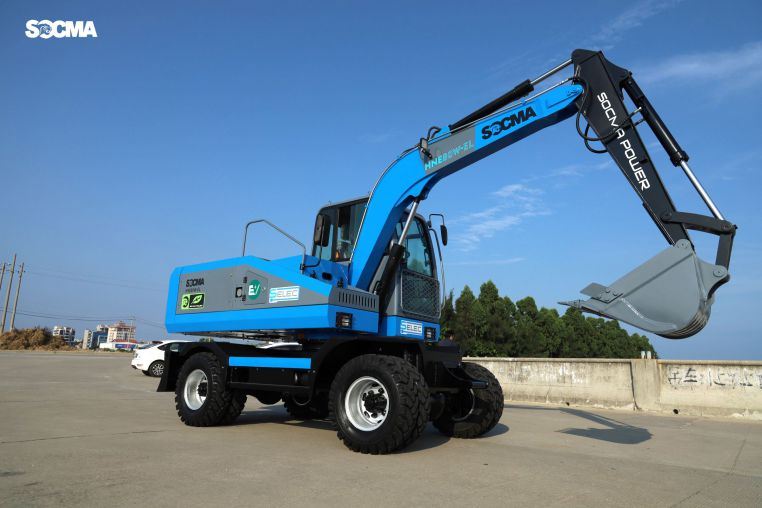

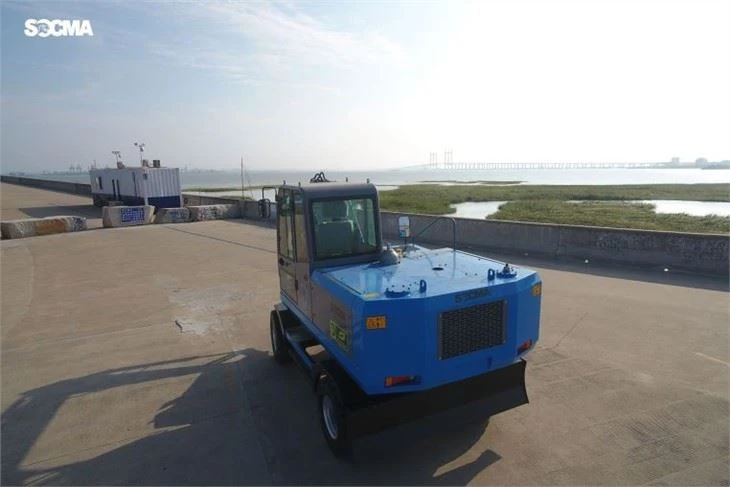

8 Tuj Lithium Electric Log Excavator
Thoob thoob 0.1-0.28 m³
Max. khawb quab yuam 50 KN
Max. Khawb Qhov tob 3930 hli
Max. Kev khawb qhov siab 6040 hli
Max. Kev khawb ncav cuag hauv av 6610 mm
Siv Haimai lub tshuab hluav taws xob thiab CATL lithium roj teeb, txuag hluav taws xob thiab tiv thaiv ib puag ncig, lub zog siv hluav taws xob tau ua kom tau zoo kom tau raws li qhov xav tau ntawm kev ua haujlwm tau zoo.
Kev nthuav dav thiab tus pas txais yuav ib ntu loj, lub zog muaj zog lub thawv kom tau raws li qhov xav tau ntawm kev ua haujlwm hnyav.
I. Parameter-Standard Configuration
Kev Ua Tau Zoo | Parameter | |
Tsis yooj yim | Ua haujlwm hnyav, kg ua | ≤8500 |
Logbase，hli | 2450 | |
Log tsuj taw，hli | 1650 | |
Min. Av tshem tawm，hli | 290 | |
Zuag qhia tag nrho ntev，hli | 6230 | |
Zuag qhia tag nrho qhov siab，hli | 2910 | |
Dav dav，hli | 2130 | |
Cab qhov siab，hli | 2898 | |
Lub peev xwm thoob，m³ | 0.1-0.28 | |
Max. Qib Kawm Tau Zoo， % | ≥30% | |
Max. tsav tsheb ceev，Km/teev | 28 | |
Tig lub vojvoog，° | 28°±1.5° | |
Kev ua haujlwm siab, MPa | 28 | |
Kev sib hloov ceev, r/min | 11.5 | |
Max. khawb quab yuam, KN | 50 | |
Lub peev xwm muaj peev xwm | Roj tank peev xwm，L | 200 |
Roj teeb muaj peev xwm, kW. h | 109 | |
Lub tshuab hluav taws xob tsis | Qauv | HP12517-G202W-R4U4 |
Nyob hwj chim，kWs | 46.5 | |
Max. zog, kW | 75 | |
Max. torque, Nm/sijhawm ntev (s) | 400/20 | |
Max. Kev sib hloov ceev | 3000 | |
Rated tig ceev | 2000 | |
Hydraulic system | Siab, MPa | 26 |
Txaus, L/min | 160 | |
kauj system | Steering iav hom | Load sensing puv hydraulic kauj |
Siab, MPa | 16 | |
Braking txoj kev | Kev pabcuam nres | Nruas nres |
Nres siab,MPa | 0.684-0.785 | |
Nres nres tsheb | Roj pneumatic nruas nres | |
Cov log tsheb txheem (lub tshuab ua pa) | (pem hauv ntej/nram qab) cov lej ntawm lub log | 4/4 |
(pem hauv ntej/nram qab) cov log tsheb loj | 8.25-16 | |

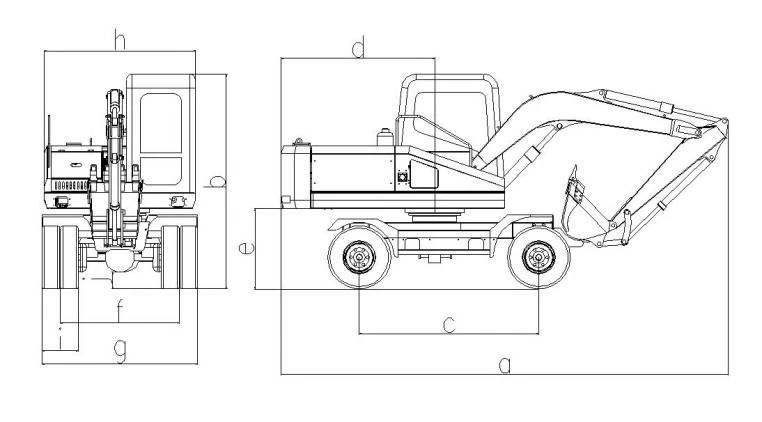

a | Zuag qhia tag nrho ntev | 6230 (hli) |
b | Zuag qhia tag nrho qhov siab | 2910 (hli) |
c | Log puag | 2450 (hli) |
d | Radius, Viav Vias Center mus Rear End | 2080 (hli) |
e | Counterweight av tshem tawm | 1090 (hli) |
f | Log nrug | 1650 （Hli） |
g | Zuag qhia tag nrho dav | 2130 （Hli） |
h | Dav ntawm Upper Structure | 2050 （Hli） |
i | Log Dav | 490 （Hli） |
j | Min.Ground Clearance | 290 （Hli） |

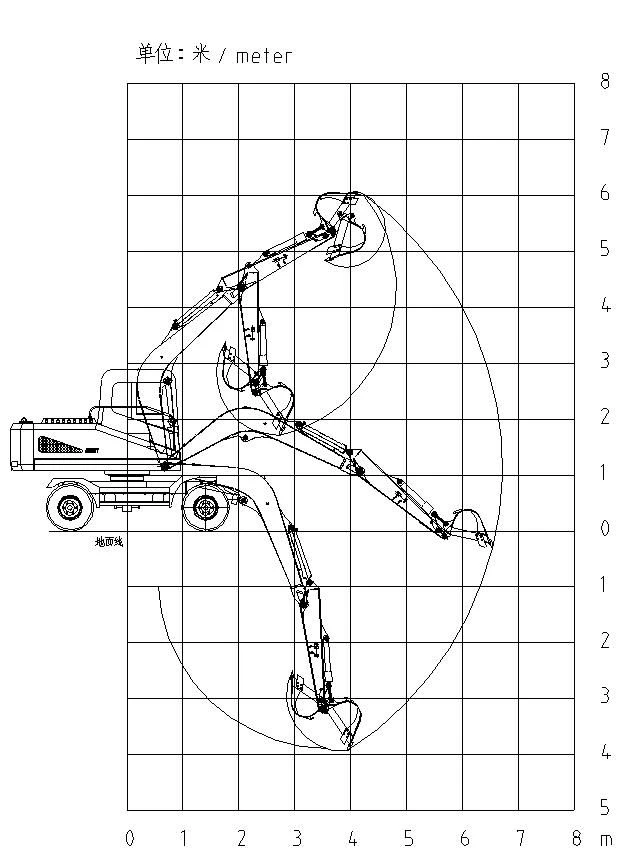

A | Max. Khawb Mus Txog | 6720 (hli) |
B | Max. Kev khawb qhov tob | 3930 (hli) |
C | Max. Khawb Qhov Siab | 6040 (hli) |
D | Max. Dumping Qhov Siab | 4840 (hli) |
E | Max. Kev khawb ncav cuag hauv av | 6610 (hli) |
II. Siv Duab
