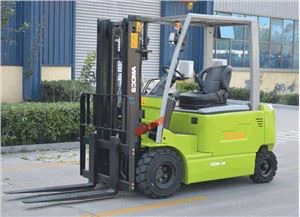

SOCMA Electric 3T Forklift Nrog Clamp
Duplex / Triplex mast nrog qhov sib txawv nqa qhov siab
Tag nrho AC ZAIP tswj
Lithium roj teeb los yog Lead-Acid roj teeb
Nrog TCM outlooking thiab TCM technology
SOCMA Electric forklift series 1.5t txog 5t muaj peev xwm ntau
Acid-Lead roj teeb lossis Lithium roj teeb xaiv
ZAIP tag nrho AC tswj
Standard configuration: ntsuas lifting hnyav, nruab nrog ob-theem 3m mast, txheem 1220mm diav rawg, imported ob tsav tsav, imported hluav taws xob tswj, imported hydraulic qhov chaw, imported gearbox, ntiv tes tswj, nruab nrog 700Ah fais fab roj teeb, ntse charger, plaub Log khoom log tsheb, lifting ceev tswj, high-end kev ruaj ntseg rooj
Yam ntxwv | Rated nqa qhov hnyav | kg | 3500 | |
Load center nrug | mm | 500 | ||
Overhang | mm | 350 | ||
Pem hauv ntej overhang | mm | 465 | ||
Wheelbase | mm | 1700 | ||
Tag nrho qhov hnyav (nrog roj teeb) | kg | 5100 | ||
Loj | Tag Nrho Length (Rau ntsug saum npoo ntawm diav rawg) | mm | 2485 | |
Tag nrho qhov dav | mm | 1240 | ||
Qhov siab ntawm kev tiv thaiv saum taub hau | mm | 2120 | ||
Standard mast qhov siab uas tsis sawv | mm | 2010 | ||
Standard mast Maximum stretch qhov siab | mm | 4080 | ||
Standard mast inclination (Lean rau pem hauv ntej / Reclining) | deg | 6/9 | ||
Av clearance ntawm ncej | mm | 130/128 | ||
Av clearance ntawm standard mast | mm | 110/95 | ||
Standard mast Dawb lifting qhov siab | mm | 140 | ||
Tig lub vojvoog (Smallest sab nraum) | mm | 2230 | ||
Maximum diav rawg qhov siab (Rated lifting hnyav) | mm | 3000 | ||
Yam tsawg kawg nkaus theoretical dav ntawm txoj cai-angle channel | mm | 2340 | ||
Yam tsawg kawg nkaus theoretical dav ntawm txoj cai-lub kaum sab xis stacking channel | mm | 4280 | ||
Qhov tsawg tshaj plaws x Qhov loj tshaj plaws | mm | 250x1100 | ||
kev ua tau zoo | Maximum mus txawv tebchaws ceev (Tsis muaj load) | km/h | 16/14 | |
Lifting ceev (tag nrho loaded / Tsis muaj load) | mm/s | 230\420 | ||
ceev ntawm dlej (tag nrho loaded / Tsis muaj load) | mm/s | 500\500 | ||
Loj tshaj plaws traction (tag nrho loaded / Tsis muaj load) | N | 16800\16350 | ||
Qib siab tshaj (tag nrho loaded) | feem pua | 15 | ||
Log tsheb | Pem hauv ntej log | 23x9-10 | ||
Tsheb log | 18x7-8 | |||
fais fab system | Roj teeb (Optional lithium roj teeb) | Qhov hluav taws xob | v | |
Capacity (Yeem ntau yam) | ah | |||
Taug kev zog ntawm taug kev lub cev muaj zog | Kw/rpm | 15 | ||
Lifting motor ntsuas lub zog | Kw/rpm | 13.5 | ||
Controller daim ntawv | AC | |||
